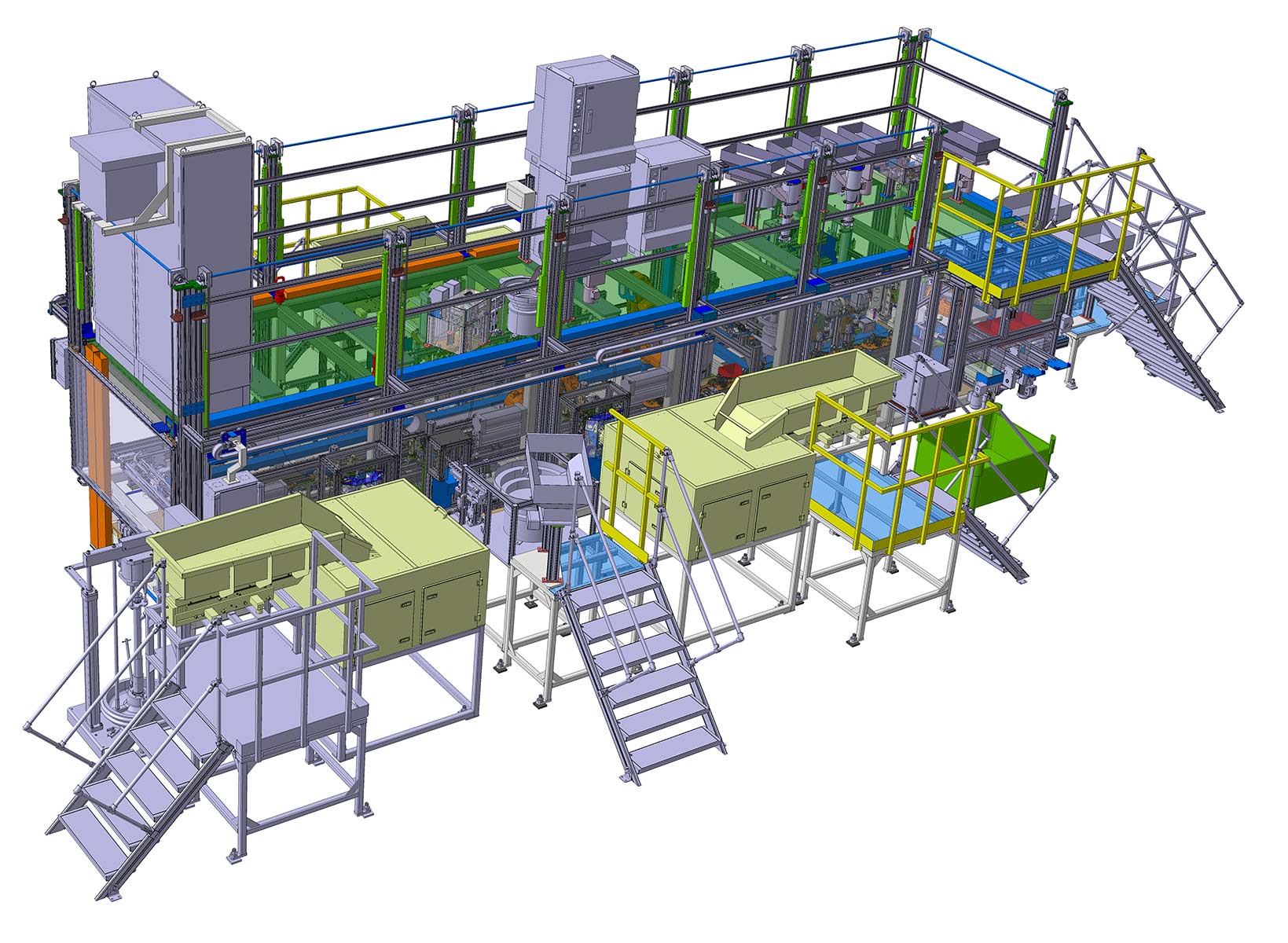

Fully-automatic assembly system for the manufacture and testing of door catches

When assembling door catches, the systems from AKE impress with a cycle time of just 5 seconds. The feeding of the individual components via conveyor systems enables operation by only one worker and ensures system autonomy of up to two hours. Even a design for the assembly of different component variants is easily possible.



System description

• Compact design with accessible system platform and vertical protective door systems
• Flexible assembly concept with workpiece carrier system and parts handling by 6-axis robot
• Processing of all individual parts as bulk material with position alignment of the components and wrong part rejection
• Optical component detection and measurement by high-resolution camera systems
• Automatic greasing and riveting of components with process monitoring
• Torque checking of the relevant bearing points
• 5 second cycle time for the assembly of one door catch
